#10-24 x 1/2, Low Profile, Socket Cap Screws, 304 Stainless Steel
Screw Diameter - Thread Pitch: #10-24
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.15*
|
| 100 – 999 |
$0.13*
|
| 1000+ |
$0.11*
|
- Chamfer on Radius: Max 0.005
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Hex
- Head Type: Low Profile Socket Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 3A
- Grade: 304
- Head Height: .0.98'
- Head Height Max: 0.19
- Head Diameter: 0.313"
- Head Side Height: Min 0.171
- Head Style: Low Profile Socket
- Hex Drive: 3/32"
- Length: 1/2"
- Material: Stainless Steel
- Overall Head Height: Max 0.190 - Min 0.185
- Part Number: 3661124162448
- Product Type: Home > Socket Cap Screws > Socket Cap Screws > 304 Stainless Steel
- Size System: US
- Size Type: Regular
- System of Measurement: Imperial
- Tensile PSI: 70,000
- Thread Direction: Right Hand
- Thread Pitch: 24
- Thread Size: 10-24
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

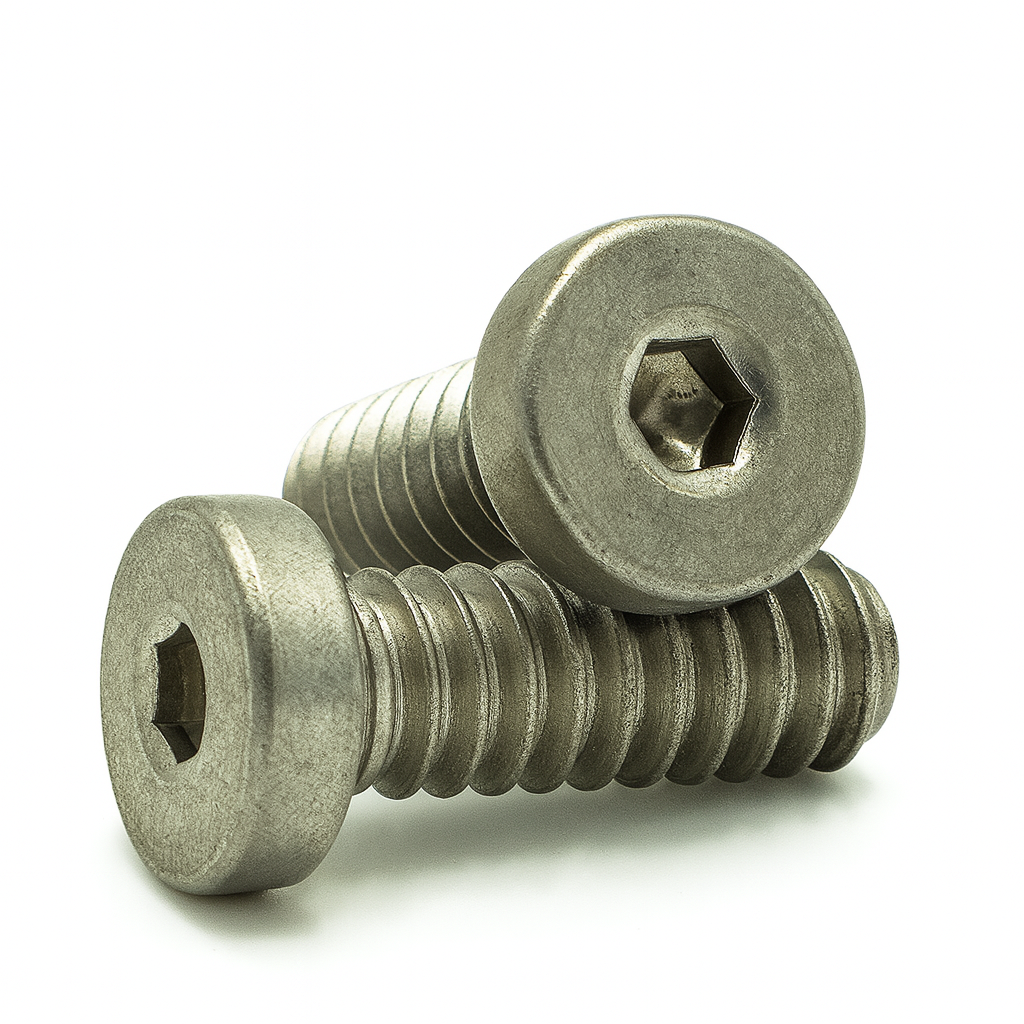

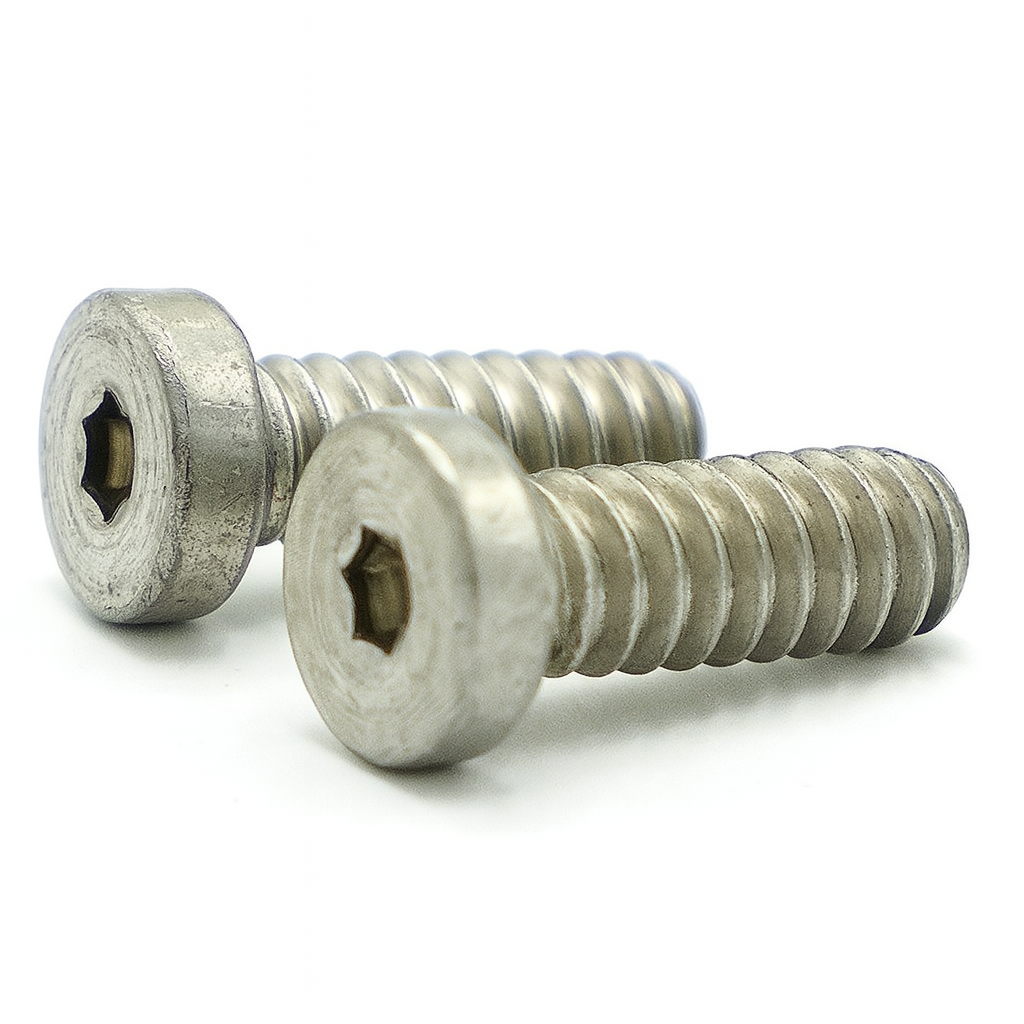

Socket cap screws, #10-24 x 1/2, low head in 304 stainless steel are machine screws with a low-height cylindrical head and hex drive, designed for flush or near-flush fastening in tight clearance applications.
- Commonly called low head socket cap screws, low head allen bolts, or low profile socket head screws
- Driven manually with a hex Allen bit or key
- Low-height cylindrical head for minimal vertical clearance
- 304 stainless steel (18-8 equivalent) offers excellent corrosion and rust resistance
- Ideal for indoor, outdoor, or freshwater-exposed applications
Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
FT = Full Thread
PT = Partial Thread
