To place an order, scroll down and enter quantities in the multi-add grid and add all items to your cart. For product details, select any SKU or size and click the Description and Specifications tabs. Scroll to the bottom for related items.

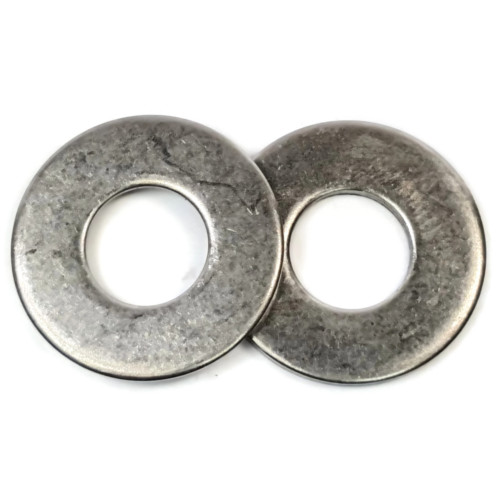

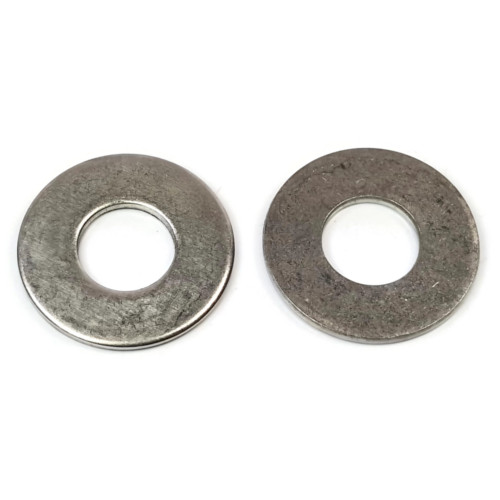

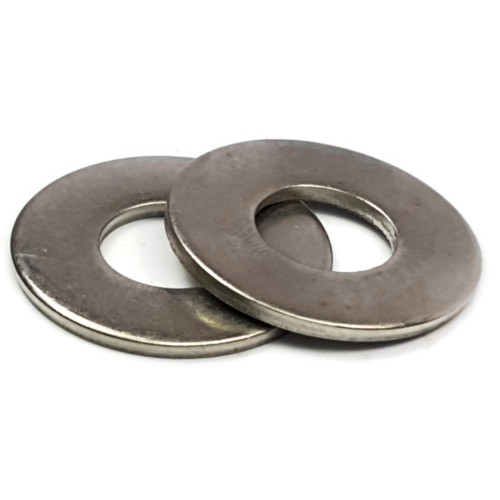

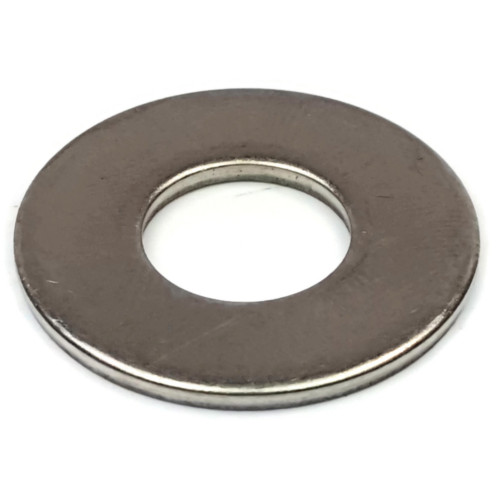

Flat Washers, Military Standard (MS), 800 Series, Stainless Steel 18-8, #10-842, ID .219, OD .500
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.07*
|
| 100 – 999 |
$0.03*
|
| 1000+ |
$0.02*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Rivet Diameter Facet: #REF!
- Grade: 18-8
- Material (Duplicate): 18-8 Stainless Steel
- Material: 18-8 Stainless Steel
- Part Number: 618930237870
- Pattern: Military Standard Flat Washer
- Product Type: Home > Washers > MS Flat Washers - Military Standard > 18-8 Stainless Steel
- Size: #10-842
- Size System: US
- Size Type: Regular
- Weight: 1 lb
Flat Washers, Military Standard (MS), 800 Series, Stainless Steel 18-8, #10-842, ID .219, OD .500
Military Flat Washer Specifications
| Washer Size | Inner Diameter (ID) | Outer Diameter (OD) | Thickness |
| #0-801 | Max 0.078" - Min 0.075" | Max 0.187" - Min 0.185" | Max 0.025" - Min 0.016" |
| #2-802 | Max 0.093" - Min 0.090" | Max 0.250" - Min 0.200" | Max 0.025" - Min 0.016" |
| #4-803 | Max 0.125" - Min 0.115" | Max 0.250" - Min 0.230" | Max 0.028" - Min 0.027" |
| #4-804 | Max 0.125" - Min 0.115" | Max 0.312" - Min 0.302" | Max 0.040" - Min 0.025" |
| #6-805 | Max 0.156" - Min 0.150" | Max 0.312" - Min 0.302" | Max 0.048" - Min 0.027" |
| #6-806 | Max 0.156" - Min 0.150" | Max 0.375" - Min 0.365" | Max 0.065" - Min 0.036" |
| #8-807 | Max 0.187" - Min 0.177" | Max 0.375" - Min 0.365" | Max 0.065" - Min 0.036" |
| #8-841 | Max 0.188" - Min 0.178" | Max 0.438" - Min 0.428" | Max 0.065" - Min 0.036" |
| #10-808 | Max 0.218" - Min 0.208" | Max 0.437" - Min 0.427" | Max 0.065" - Min 0.036" |
| #10-809 | Max 0.250" - Min 0.240" | Max 0.562" - Min 0.556" | Max 0.080" - Min 0.051" |
| #10-842 | Max 0.219" - Min 0.209" | Max 0.500" - Min 0.495" | Max 0.065" - Min 0.036" |
| 1/4"-810 | Max 0.281" - Min 0.271" | Max 0.625" - Min 0.615" | Max 0.080" - Min 0.051" |
| 1/4"-811 | Max 0.312" - Min 0.302" | Max 0.750" - Min 0.730" | Max 0.080" - Min 0.051" |
| 5/16"-812 | Max 0.343" - Min 0.333" | Max 0.687" - Min 0.677" | Max 0.080" - Min 0.051" |
| 5/16"-813 | Max 0.375" - Min 0.365" | Max 0.875" - Min 0.865" | Max 0.104" - Min 0.064" |
| 3/8"-814 | Max 0.406" - Min 0.396" | Max 0.812" - Min 0.802" | Max 0.080" - Min 0.051" |
| 3/8"-815 | Max 0.437" - Min 0.417" | Max 1.000" - Min 0.950" | Max 0.104" - Min 0.064" |
| 7/16"-816 | Max 0.468" - Min 0.448" | Max 0.921" - Min 0.901" | Max 0.080" - Min 0.051" |
| 7/16"-817 | Max 0.500" - Min 0.495" | Max 1.250" - Min 1.150" | Max 0.104" - Min 0.064" |
| 1/2"-818 | Max 0.531" - Min 0.521" | Max 1.062" - Min 1.000" | Max 0.121" - Min 0.074" |
| 1/2"-819 | Max 0.562" - Min 0.552" | Max 1.375" - Min 1.325" | Max 0.132" - Min 0.086" |
| 5/8"-820 | Max 0.656" - Min 0.636" | Max 1.312" - Min 1.302" | Max 0.121" - Min 0.074" |
| 5/8"-821 | Max 0.687" - Min 0.677" | Max 1.750" - Min 1.650" | Max 0.160" - Min 0.108" |
| 3/4"-822 | Max 0.812" - Min 0.799" | Max 1.500" - Min 1.450" | Max 0.160" - Min 0.108" |
| 3/4"-823 | Max 0.812" - Min 0.799" | Max 2.000" - Min 1.900" | Max 0.177" - Min 0.122" |
| 7/8"-824 | Max 0.937" - Min 0.907" | Max 1.750" - Min 1.650" | Max 0.160" - Min 0.108" |
| 7/8"-825 | Max 0.937" - Min 0.907" | Max 2.250" - Min 2.150" | Max 0.192" - Min 0.136" |
| 1"-826 | Max 1.062" - Min 1.000" | Max 2.000" - Min 1.900" | Max 0.160" - Min 0.108" |
| 1"-827 | Max 1.062" - Min 1.000" | Max 2.500" - Min 2.400" | Max 0.192" - Min 0.136" |
Product number:
1000-200010-0001
