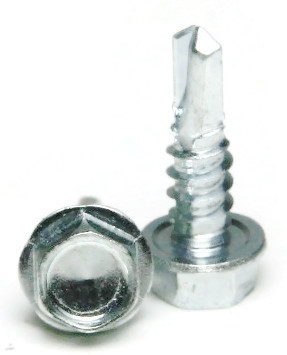

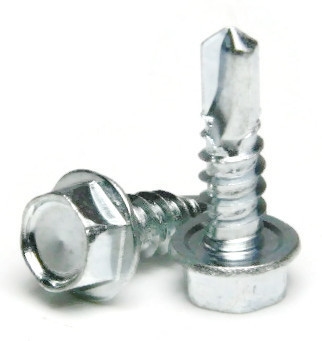

Sheet Metal Screws, Hex Washer Head, Self Driller TEK 2, Zinc Plated Steel, #6 x 1/2"
Diameter - Thread Pitch: #6-20
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.07*
|
| 100 – 999 |
$0.03*
|
| 1000+ |
$0.02*
|
- Across Flats (Width): 1/4" (Max 0.250 - Min 0.244)
- ANSI: B18.6.4
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #6
- Drive Style: External Hex
- Elongation: 30%
- Head Type: Hex Washer Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Hardness: 40 Rockwell C
- Head Size: 1/4"
- Head Style: Hex Washer
- Length: 1/2"
- Material: Stainless Steel
- Part Number: 787392586045
- Point Type: TEK
- Product Type: Self Drilling Screws
- Size Type: Regular
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 2
- Thread Diameter Major: (#6) 0.139"
- Thread Diameter Minor: (#6) 0.104"
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: #6-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Wrench Size: 1/4"
- #6-20
- Hexagon drive for use with a wrench or socket
- Fully Threaded from tip to head
- Integral washer at the top of the head
- TEK Self drilling screws
- Zinc plated steel hex washer head self drilling screws add a layer of corrosion resistance to the steel
- Not suitable of extreme environment uses
- Can be either a light shiny color or have a bright blue hue
- REACH and RoHS Compliant
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Product number:
8204-002-0020
