To place an order, scroll down and enter quantities in the multi-add grid and add all items to your cart. For product details, select any SKU or size and click the Description and Specifications tabs. Scroll to the bottom for related items.

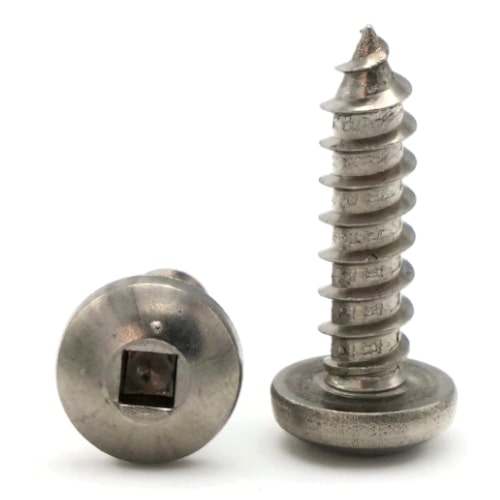

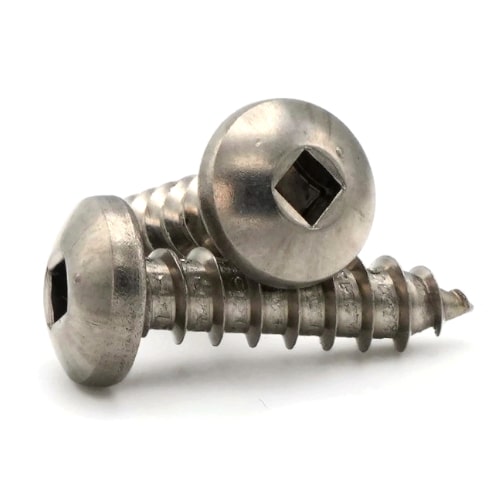

Sheet Metal Screws, Square Drive Pan Head, Stainless Steel 316, #10 x 1/2"
Diameter - Thread Pitch: #10-16
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.20*
|
| 100 – 999 |
$0.16*
|
| 1000+ |
$0.12*
|
- ANSI: ANSI B18.6.4
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Internal Square
- Elongation: 30%
- Head Type: Pan Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 316
- Hardness: 100 Rockwell B
- Head Height Max: 0.11
- Head Diameter: Max 0.373 - Min 0.357
- Head Style: Pan
- Length: 1/2"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.110 - Min 0.099
- Point Type: A
- Product Type: Sheet Metal Screws
- Reduction: 0.4
- Square Drive: #2
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: #10-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Yield PSI: 55,000 - 75,000 PSI
- #10-16
- Easily cut into soft materials
- Fully threaded
- Threads cut into material
- Great for attaching metal equipment to wood
- Strong retention in wood
- Square drive to prevent stripping at higher torque
- Sizes listed below as: Diameter - Length
- 316 Stainless steel square drive pan head sheet metal screws are corrosion and rust resistant
- Great for fresh water moisture environments
Product number:
6016-006-002
